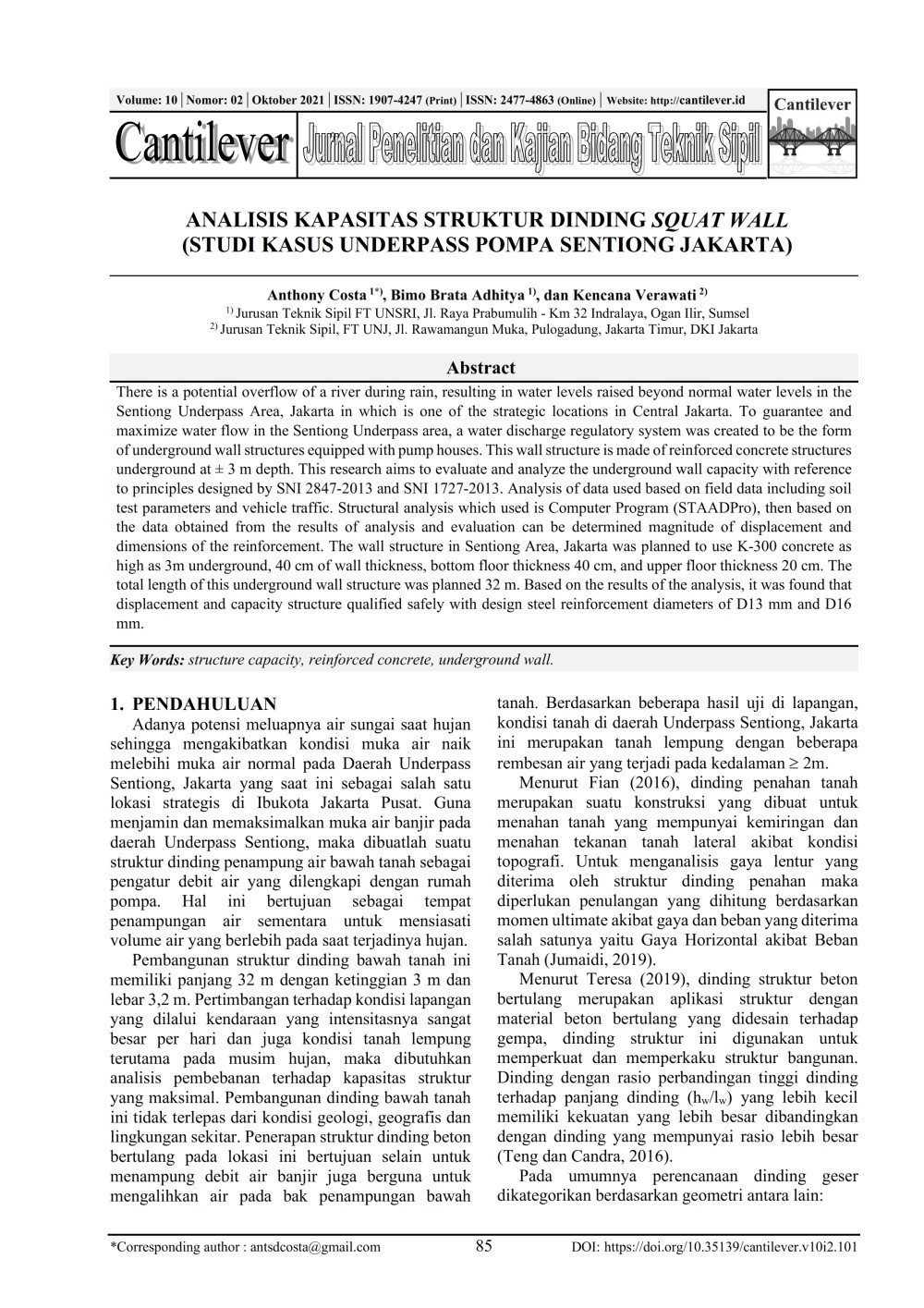

Analisis Kapasitas Struktur Dinding Squat Wall (Studi Kasus Underpass Pompa Sentiong Jakarta) Squat Wall Structure Capacity Analysis (Case Study of Jakarta Sentiong Pump Underpass)
Main Article Content
There is a potential overflow of a river during rain, resulting in water levels raised beyond normal water levels in the Sentiong Underpass Area, Jakarta in which is one of the strategic locations in Central Jakarta. To guarantee and maximize water flow in the Sentiong Underpass area, a water discharge regulatory system was created to be the form of underground wall structures equipped with pump houses. This wall structure is made of reinforced concrete structures underground at ± 3 m depth. This research aims to evaluate and analyze the underground wall capacity with reference to principles designed by SNI 2847-2013 and SNI 1727-2013. Analysis of data used based on field data including soil test parameters and vehicle traffic. Structural analysis which used is Computer Program (STAADPro), then based on the data obtained from the results of analysis and evaluation can be determined magnitude of displacement and dimensions of the reinforcement. The wall structure in Sentiong Area, Jakarta was planned to use K-300 concrete as high as 3 m underground, 40 cm of wall thickness, bottom floor thickness 40 cm, and upper floor thickness 20 cm. The total length of this underground wall structure was planned 32 m. Based on the results of the analysis, it was found that displacement and capacity structure qualified safely with design steel reinforcement diameters of D13 mm and D16 mm.
Jumaidi., Habir H., Suratmi. (2019). Perancangan Struktur Dinding Penahan Tanah pada Pekerjaan Penanganan Longsoran Jalan Batu Cermin Samarinda, 1(1)
Teresa, F.A.., Chandra J., Purnomo, J. (2019). Kapasitas Geser Dinding Struktur Beton Bertulang dengan memperhitungkan Pengaruh Rasio terhadap Panjang Dinding, 8(1)
Teng, S., and Chandra, J. (2016). Cyclic Shear Behavior of High Strength Concrete Structural Walls. ACI Structural Journal. Vol.113, No. 6, 1335-1345
Fajar, N. (2017). Pengaruh Dinding Geser terhadap Perencanaan Kolom dan Balok Bangunan Gedung Beton Bertulang, 19(1)
Badan Standarisasi Nasional. SNI 2847-2013 Persyaratan Beton Struktural Untuk Bangunan Gedung. Jakarta: Badan Standarisasi Nasional; 2013
Badan Standarisasi Nasional. SNI 1727:2013 Pembebanan Minimum untuk Bangunan Gedung dan Struktur Lain. Jakarta: Badan Standarisasi Nasional; 2013
Badan Standarisasi Nasional. SNI 1726:2013 Tata Cara Perencanaan Ketahanan Gempa untuk Struktur Bangunan Gedung dan Nongedung. Jakarta: Badan Standarisasi Nasional; 2013
Badan Standarisasi Nasional. SNI 8460: 2017 Persyaratan Perancangan Geoteknik. Jakarta: Badan Standarisasi Nasional; 2017
Ginting, P.A.A, dan Tarigan, J. (2016). Analisa Gaya Uplift pada Reservoir. Medan.
