Main Article Content

Yudha Fardyansah
Nurly Gofar

Abstract

The performance of flexible pavement is highly influenced by the quality of subgrade material. In Palembang, the foundation soil is usually consisted of clay which is sensitive to change in water content caused by rainfall as well as inundation. This paper presents results of laboratory study on the effect of adding sand to clay to be used as subgrade material for urban roads.  California Bearing Ratio (CBR) values were used as indication of strength improvement of the subgrade in unsoaked and soaked conditions. The suitability of the stabilized soil for use as subgrade of pavement construction in response to normal and inundated conditions was further assessed through field verification using Dynamic Cone Penetrometer. Results of both laboratory and field studies indicated that addition of 21% sand by dry weight give the most improvement in terms of CBR value. In this case, the CBR unsoaked increased from 8% to 18% while the CBR soaked increased from less than 3% to 8%. Field verification showed that the CBR of compacted natural soil decreased from 8% to 2% after rainfall while the CBR of the sand stabilized soil decreased from 17% to 8%. Thus the sand stabilized clay is expected to perform adequately even after subjected to rainfall and inundation.

Downloads

Download data is not yet available.

Article Details

How to Cite

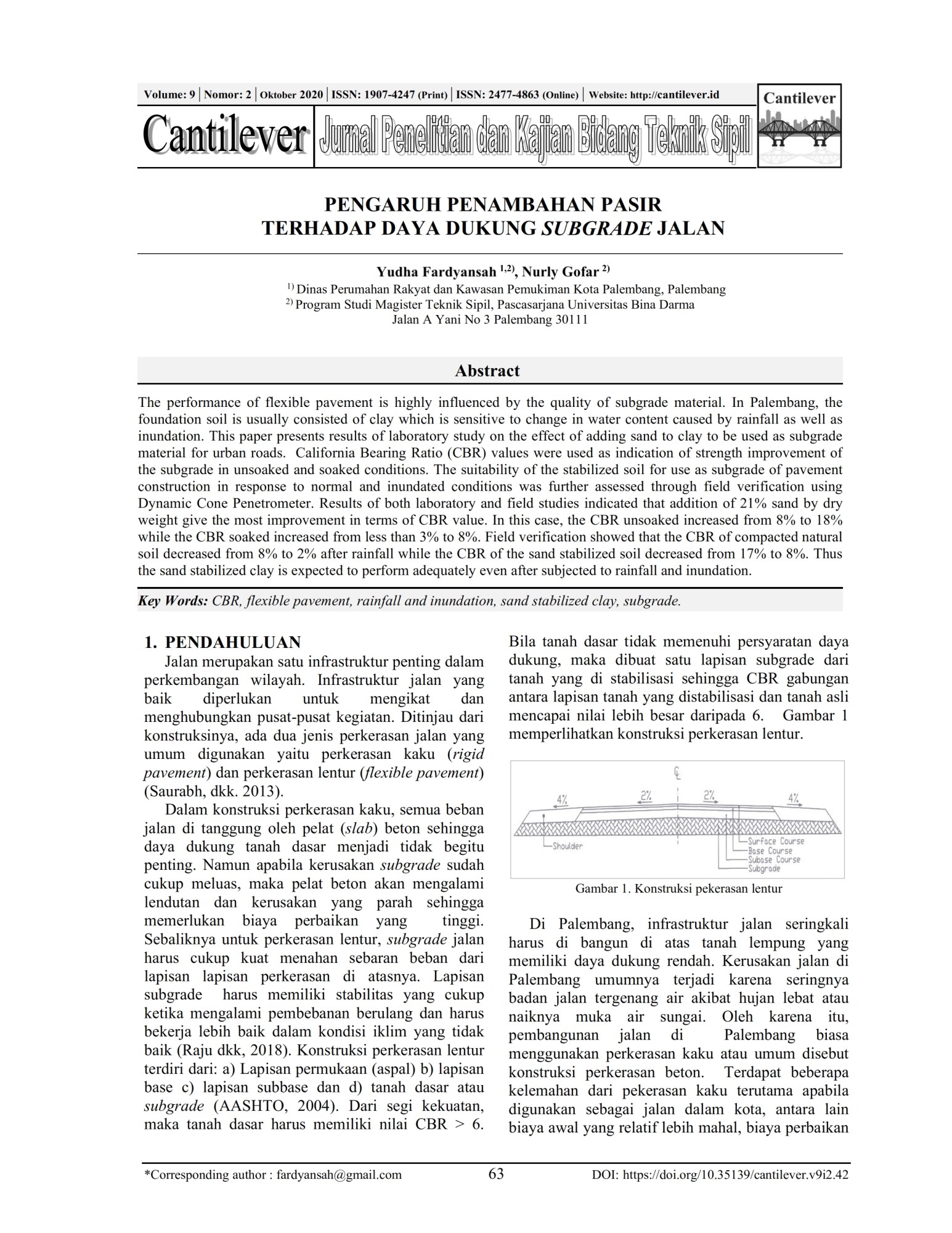

Fardyansah, Y., & Gofar, N. (2020). Pengaruh Penambahan Pasir Terhadap Daya Dukung Subgrade Jalan. Cantilever: Jurnal Penelitian Dan Kajian Bidang Teknik Sipil, 9(2), 63-68. https://doi.org/10.35139/cantilever.v9i2.42
References
AASHTO (2004). Standard specifications for Transportation materials and Methods of Sampling and Testing. USA: American Association of State Highway Officials.
ASTM D6951 / D6951M-18. (2018). Standard Test Method for Use of the Dynamic Cone Penetrometer in Shallow Pavement Applications. West Conshohocken: ASTM International.
Dermawan, A., Puri, A., & Mildawati, R. (2017). Pengaruh Perendaman Terhadap Kuat Dukung Tanah Terstabilisasi Pasir. Prosiding Konferensi Nasional Teknik Sipil dan Perencanaan (KN-TSP) 2017, 63 – 68.
DitJend Bina Marga. (2004). Spesifikasi Teknis Jalan. Jakarta: DitJend Bina Marga.
Mohod, M. V. & Kadam, K. N. (2016). A Comparative Study on Rigid and Flexible Pavement: A Review. IOSR Journal of Mechanical and Civil Engineering. 13(3), 84-88.
Prasenda, C., Setyanto, & Iswan. (2015). Pengaruh Penambahan Pasir Terhadap Tingkat Kepadatan dan Daya Dukung Tanah Lempung Lunak. JRSDD, 3(1), 91 – 102.
Putri, A. Y. & Marzuko, A. (2018). Stabilisasi Tanah Lempung Dengan Campuran Pasir Vulkanik Merapi Dan Gipsum Untuk Subgrade Perkerasan Lentur Jalan.. Universitas Islam Indonesia: Yogyakarta.
Raju, S., Kolathayar, S., & Sharma, A. (2018). Strength Behavior of Subgrade Soil Mixed with Sand Manufacturing Dust and Fiber. Journal of GeoEngineering, 13(2), 79-84.
Roy, T. P. (2013). Influence of Sand on Strength Characteristics of Cohesive Soil for Using as Subgrade of Road. Procedia - Social and Behavioral Sciences, 104, 218 – 224.
Salgado, R. & Yoon, S. M. (2002) Dynamic Cone Penetration Test (DCPT) for Subgrade Assessment, Final Report (Publication No: FHWA/IN/JTRP-2002/30), West Lafayette: INDOT Research.
Sarino & Gofar, N. (2005). Use of Local Sand for Standard Material for Sand Cone Test. Jurnal Teknik Sipil Sriwijaya. 1(1), 28-33.
Saurabh, J., Joshi, Y. P., & Goliya, S. S. (2013). Design of Rigid and Flexible Pavements by Various Methods & Their Cost Analysis of Each Method, Int. Journal of Engineering Research and Applications, 3(5), 119-123.
Simanjuntak, M. R. A., Lubis, K., & Rangkuti, N. M. (2017) Stabilisasi Tanah Lempung dengan Campuran Pasir Pantai terhadap Nilai CBR, JCEBT, 1(2), 96-104.
